Marathon County | Laundry Steam Boiler

Dynamic provided the HVAC design for the laundry facility at Marathon County as the existing steam boiler plant was being decommissioned and a new steam source was required to maintain the laundry facility.

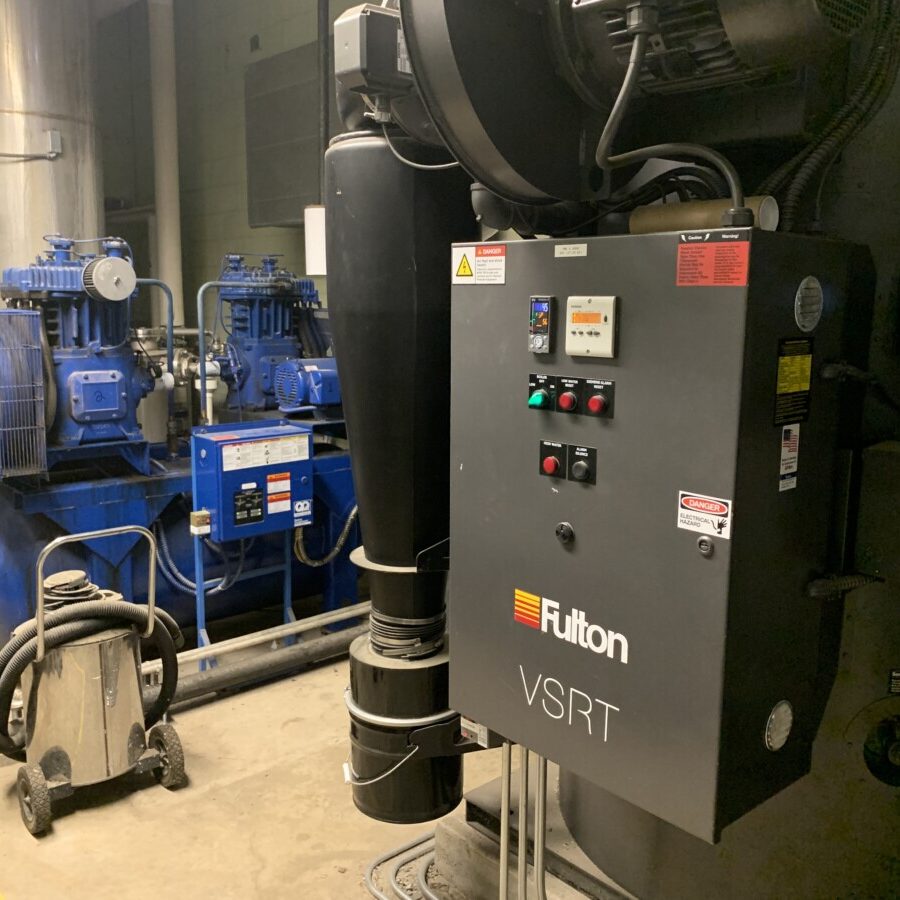

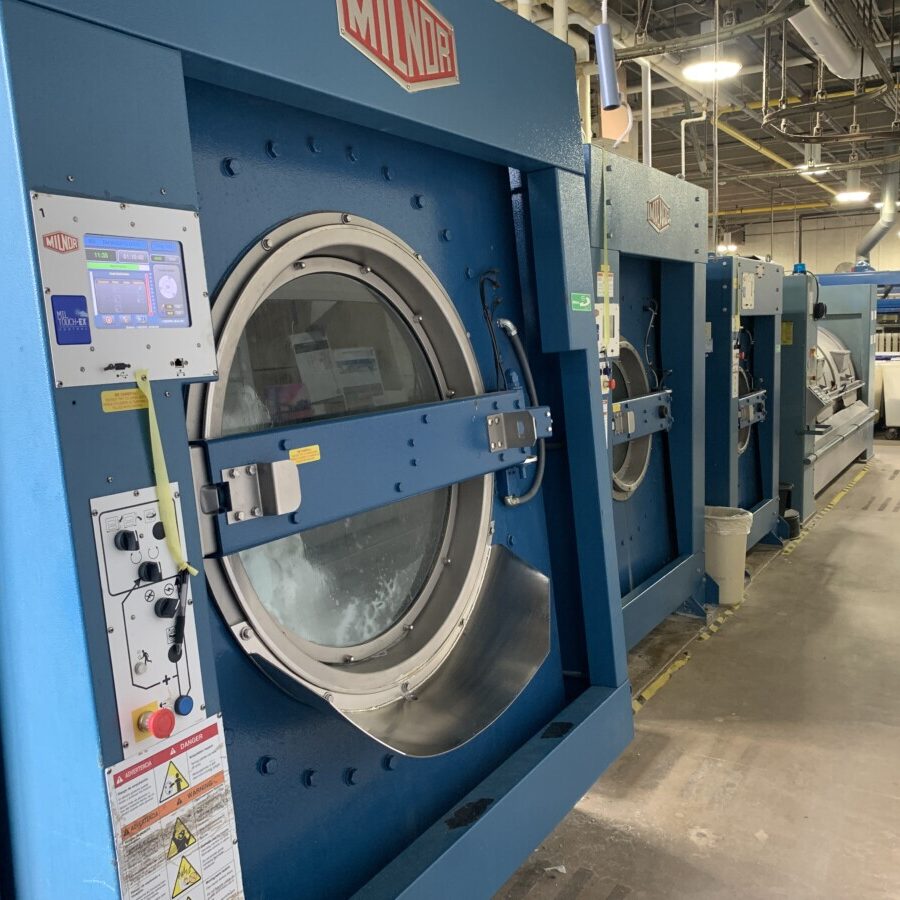

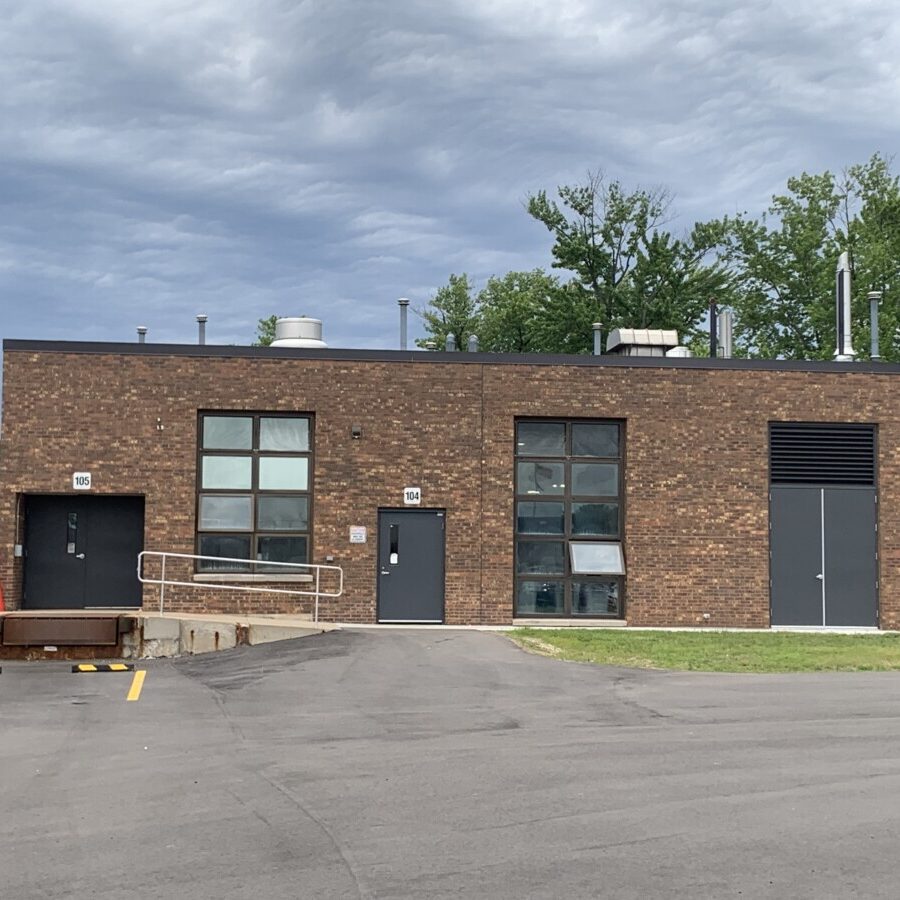

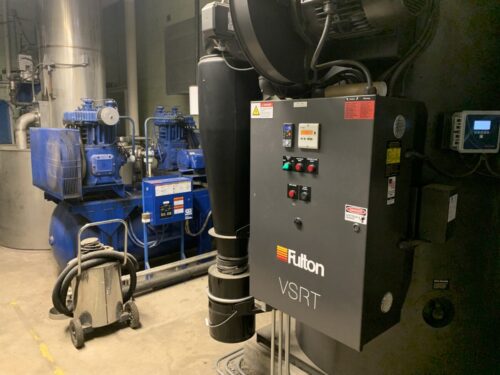

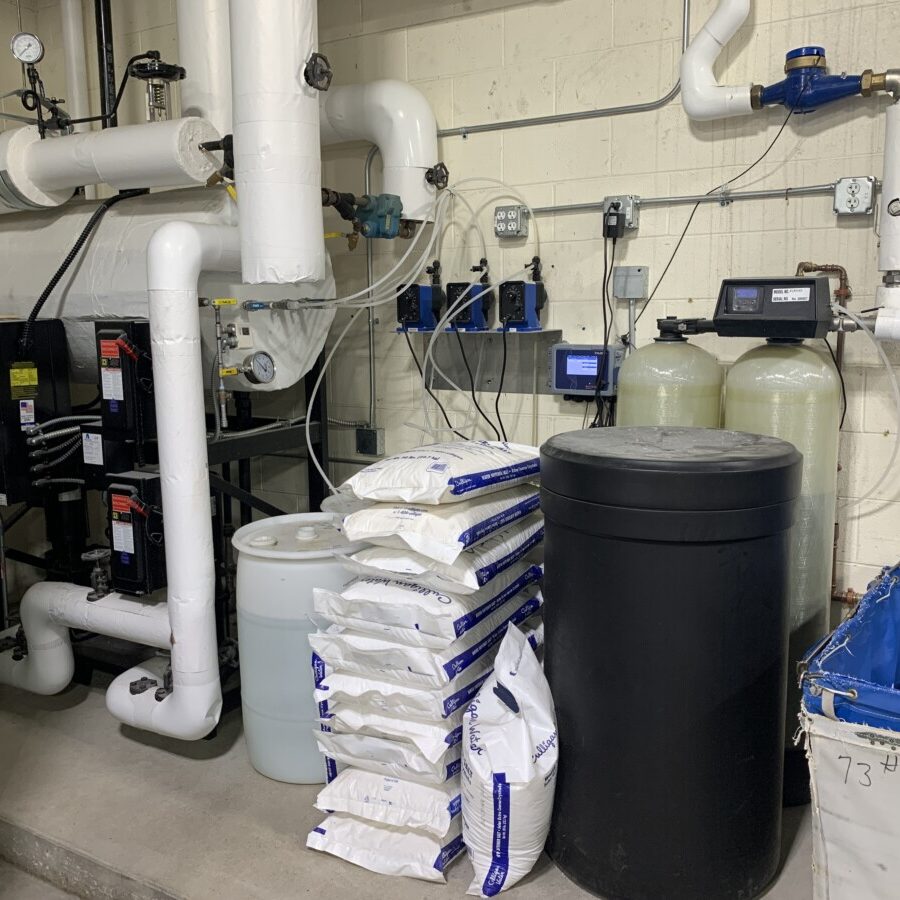

The laundry facility consisted of four (4) large capacity washing machines that operate on steam to service the County.  One (1) new 60 HP steam boiler was provided to operate at 60 PSIG to serve the washers.  A couple system was provided including a boiler feedwater system and water softener system.  Due to space constraints, the existing mechanical room was reused and reconfigured to fit the new equipment including relocating the air compressor serving the laundry facility.  Additionally, a new entrance from the exterior was provided from an old curtainwall in order to provide combustion air for the boiler as well as maintenance access.

Project Highlights

Project Type
Industrial

Size
1,000 SF

Completion Date
Fall 2023

Location
Wausau, WI

Project Team
Stainless Specialists Inc. | Mechanical Contractor
