Temp-Air | Watertown Facility

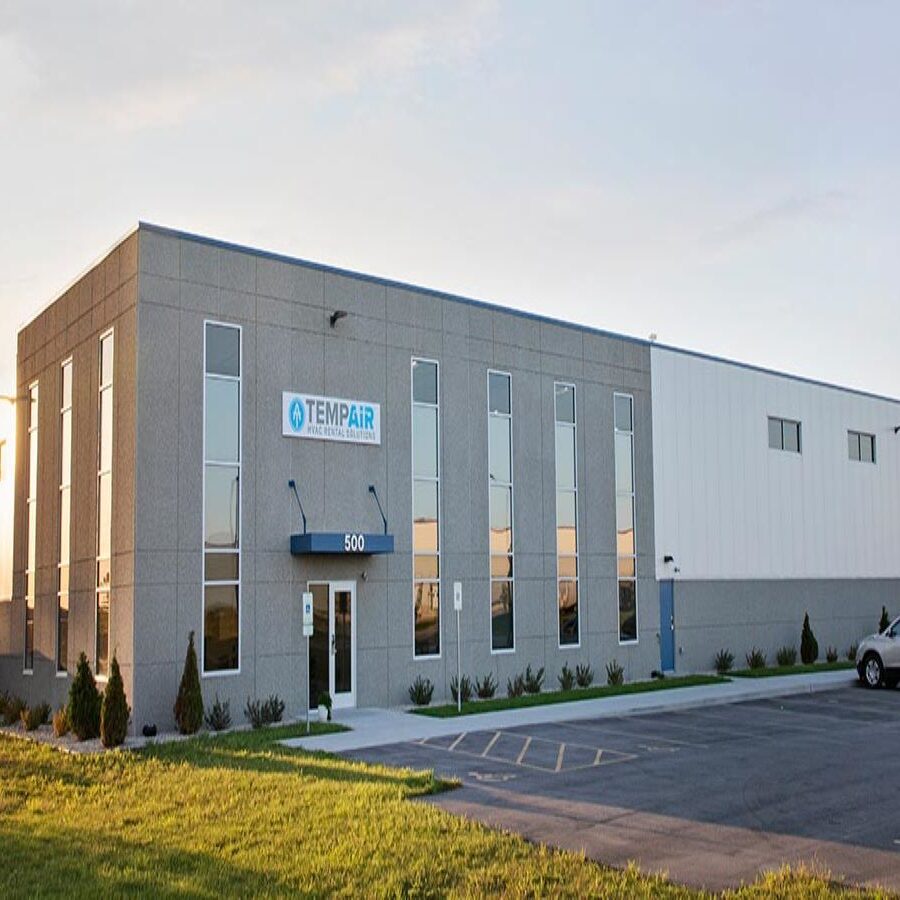

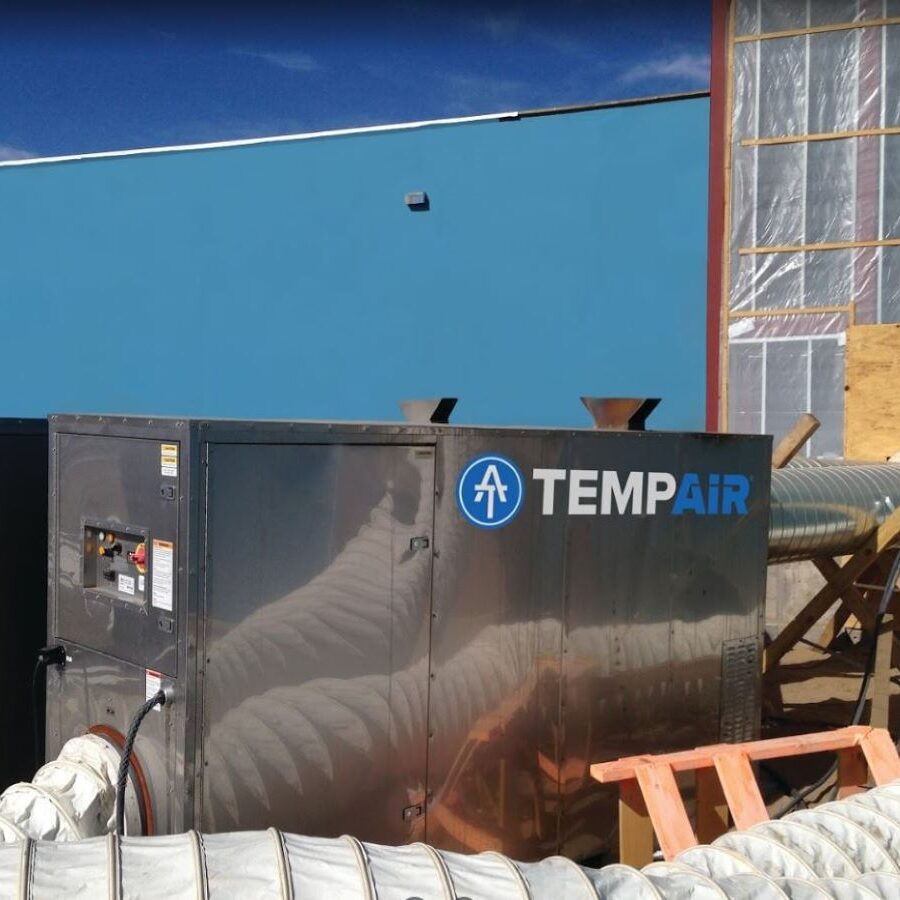

Dynamic designed an industrial facility to support the sales of temporary heating and cooling equipment for buildings under construction.  The facility consists of shop workstations, part storage, warehousing, a wash bay, a paint booth, reconditioning space, testing, and an office space with mezzanines.

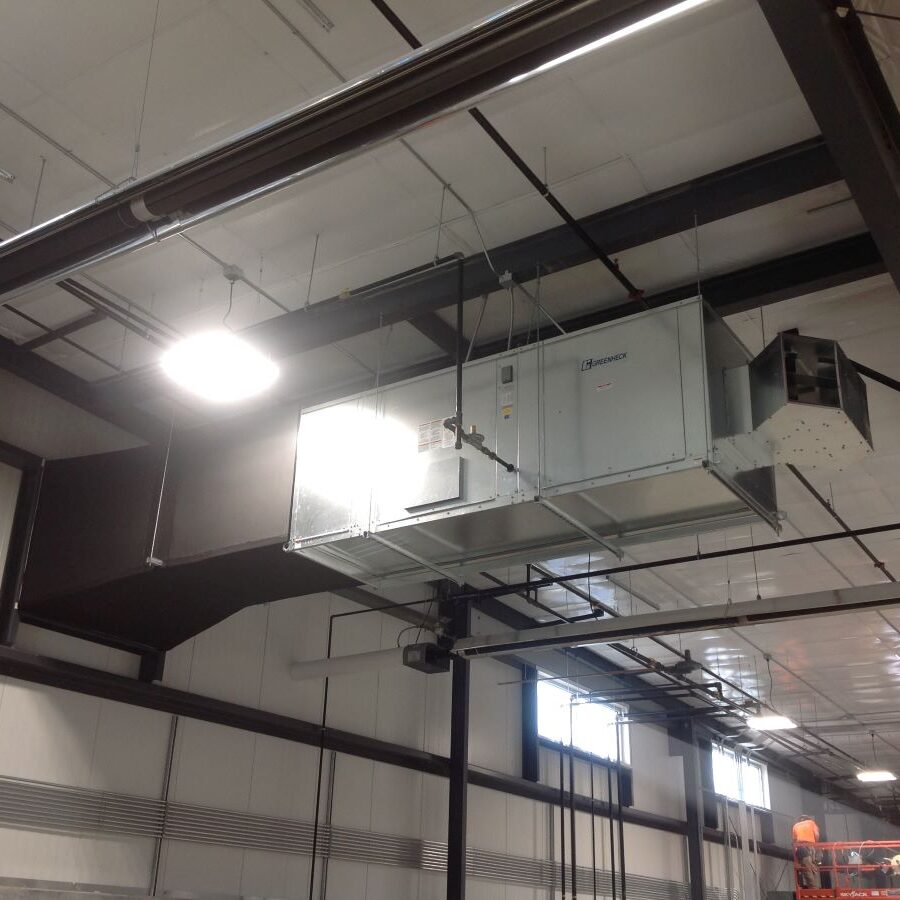

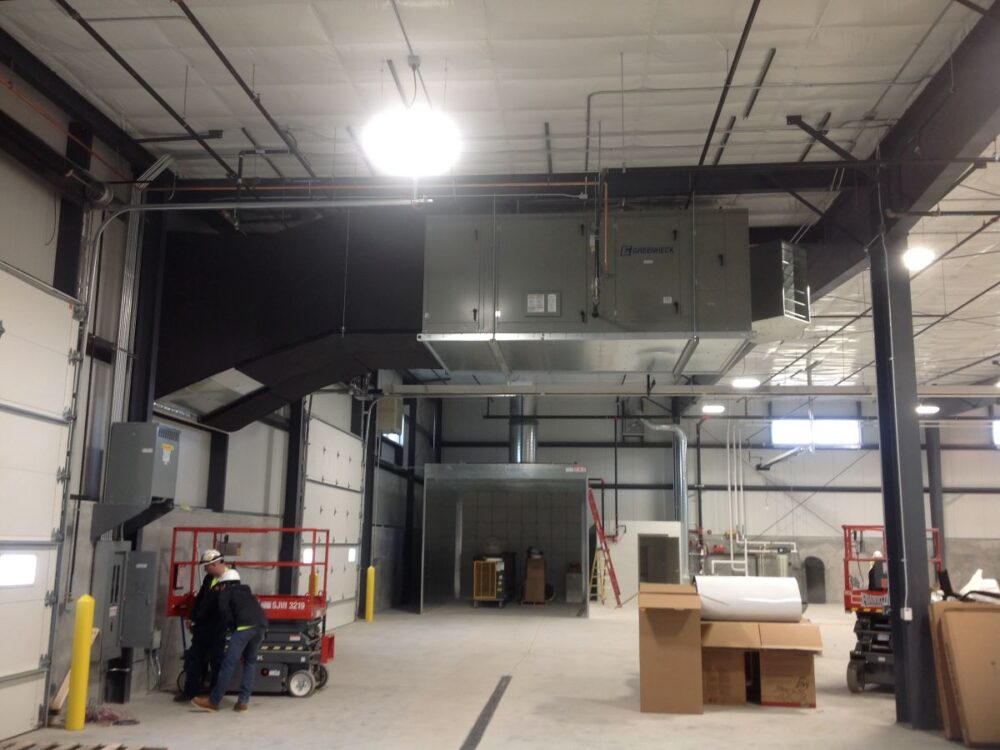

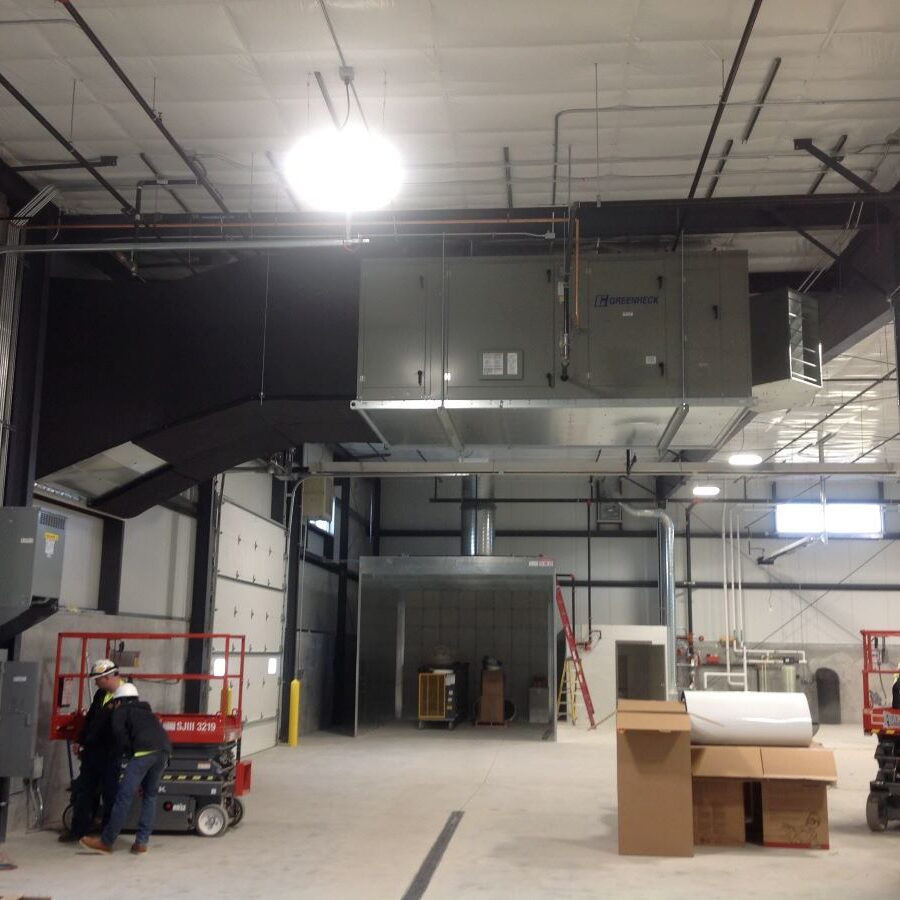

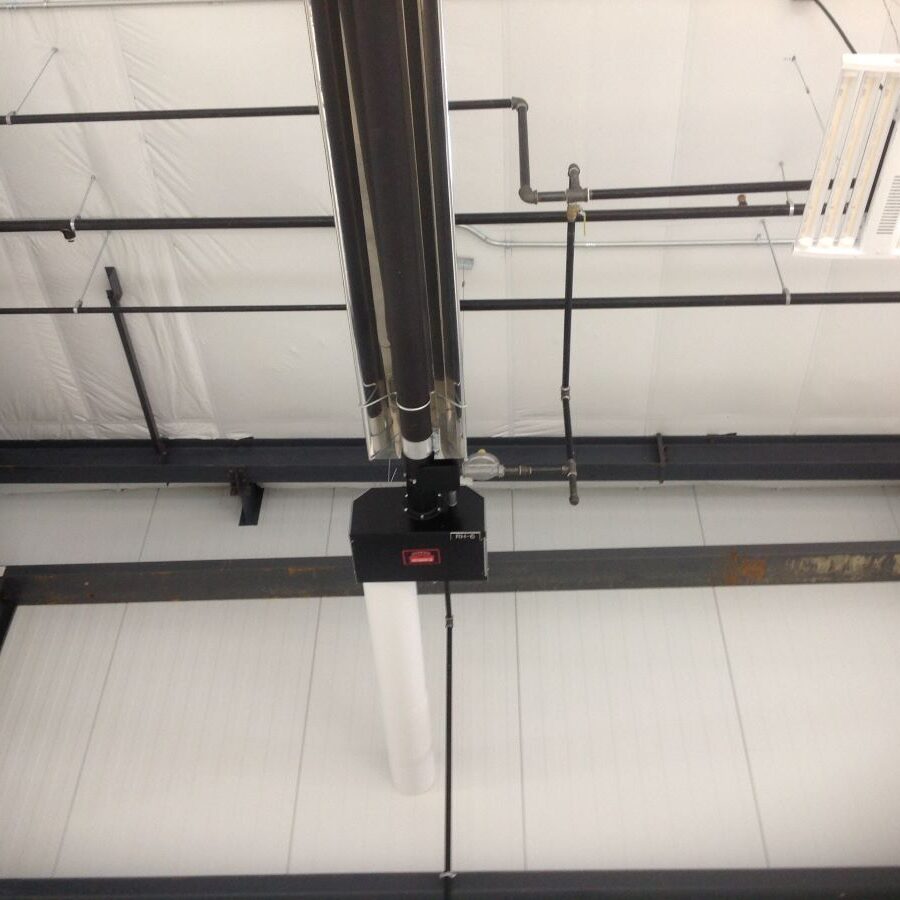

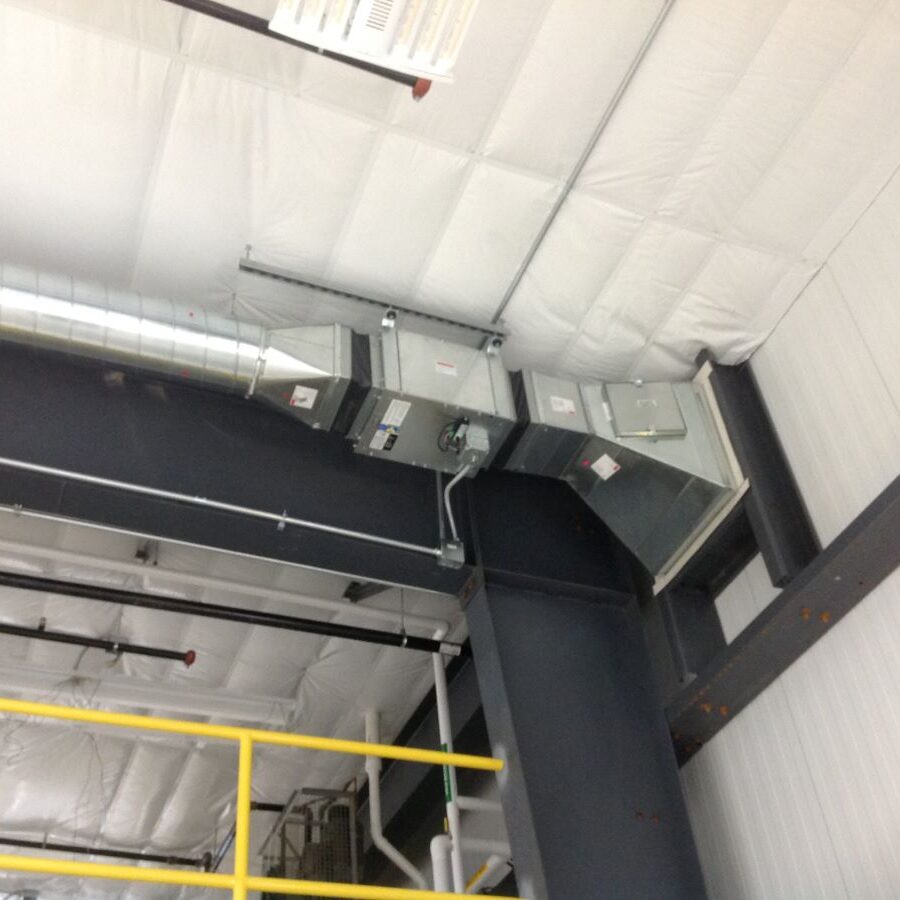

The design of the industrial space includes an infrared radiant heating system consisting of ten (10) low-intensity, tube type heaters that heats the entire space for low energy consumptions compared to forced air, gas fired make-up air unit systems.  The building also includes two (2) gas fired make-up air units that are only operated when building exhaust is enabled to maintain building pressurization due to equipment testing.  The office space is served by a 6-ton rooftop unit mounted on grade with VAV boxes with electric reheat.

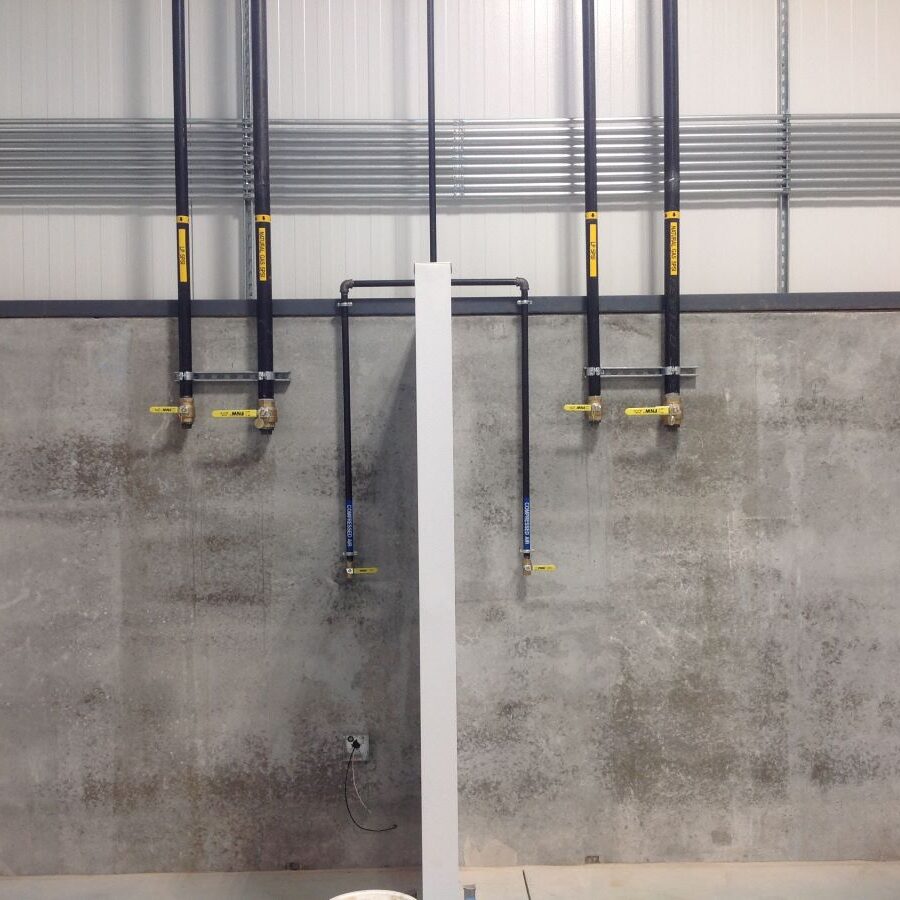

The building is also provided with a natural gas and propane piping distribution piping that is utilized for equipment testing and check-out prior to renting the equipment.

Project Highlights

Project Type
Industrial

Size
32,700 SF
(2,900 SF Office)

Completion Date
Fall 2018

Location
Watertown, WI

Project Team
Abacus Architects | Architect
Maas Brothers | Construction Manager
Harken | Mechanical Contractor
